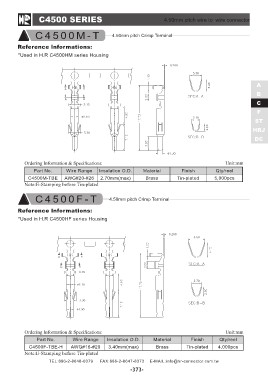

C4500 SERIES 4.50mm pitch wire to wire connector
C4500M-T 4.50mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R C4500HM series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Brass Tin-plated
C4500M-TBE AWG#20-#26 2.70mm(max)
Note:E-Stamping before Tin-plated
C4500F-T 4.50mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R C4500HF series Housing
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 4,000pcs
3.40mm(max) Brass Tin-plated
C4500F-TBE-H AWG#16-#20
Note:E-Stamping before Tin-plated
