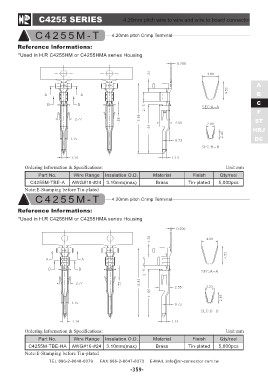

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector
C4255M-T 4.20mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R C4255HM or C4255HMA series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Tin-plated
C4255M-TBE-A AWG#18-#24 3.10mm(max) Brass
Note:E-Stamping before Tin-plated
C4255M-T 4.20mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R C4255HM or C4255HMA series Housing
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Brass Tin-plated
C4255M-TBE-HA AWG#16-#24 3.10mm(max)
Note:E-Stamping before Tin-plated
