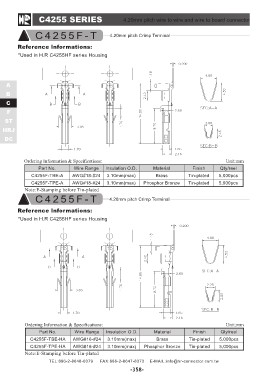

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

C4255F-T 4.20mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C4255HF series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Tin-plated 5,000pcs
C4255F-TBE-A AWG#18-#24 3.10mm(max) Brass Tin-plated

C4255F-TPE-A AWG#18-#24 3.10mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

C4255F-T 4.20mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C4255HF series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish

C4255F-TBE-HA AWG#16-#24 3.10mm(max) Brass Tin-plated 5,000pcs
C4255F-TPE-HA AWG#16-#24 3.10mm(max) Phosphor Bronze Tin-plated 5,000pcs
Note:E-Stamping before Tin-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-358-
