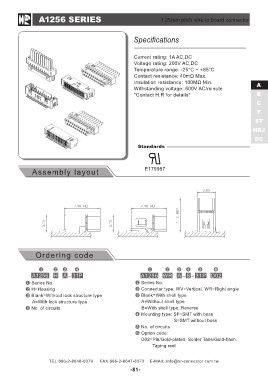

A1256 SERIES 1.25mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 1A AC,DC A
Voltage rating: 200V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 40mΩ Max. F
Insulation resistance: 100MΩ Min. ST
Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987

Ordering code

A1256 H A - 31P A1256 WR A - S - 31P D02

Series No. Series No.
H=Housing Connector type: WV=Vertical, WR=Right angle
Blank=Without lock structure type Blank=With shell type
A=With lock structure type A=Without shell type
No. of circuits B=With shell type, Reverse
Mounting type: SF=SMT with boss

S=SMT without boss
No. of circuits
Option code:
D02=Pin/Gold-plated, Solder Tabs/Gold-flash,

Taping reel

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-81-
