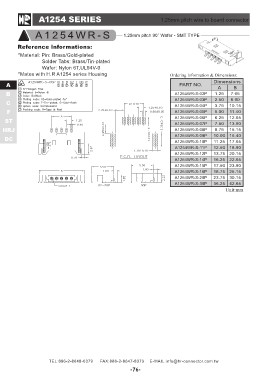

A1254 SERIES 1.25mm pitch wire to board connector
A 01 82 05 04 HWIR - S 1.25mm pitch 90˚ Wafer - SMT TYPE
Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Gold-plated
PART NO. Dimensions
Solder Tabs: Brass/Tin-plated AB
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1254 series Housing A1254WR-S-02P 1.25 7.65
A A1254WR-S-03P 2.50 8.90
B
C A1254WR-S-04P 3.75 10.15
F
ST A1254WR-S-05P 5.00 11.40
HRJ
DC A1254WR-S-06P 6.25 12.65
A1254WR-S-07P 7.50 13.90
A1254WR-S-08P 8.75 15.15
A1254WR-S-09P 10.00 16.40
A1254WR-S-10P 11.25 17.65
A1254WR-S-11P 12.50 18.90
A1254WR-S-12P 13.75 20.15
A1254WR-S-14P 16.25 22.65
A1254WR-S-15P 17.50 23.90
A1254WR-S-16P 18.75 25.15
A1254WR-S-20P 23.75 30.15
A1254WR-S-30P 36.25 42.65
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-76-
