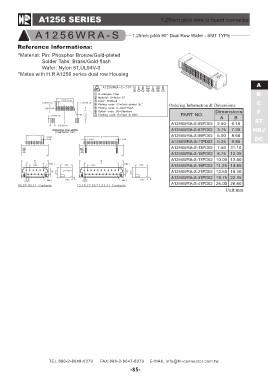

A1256 SERIES 1.25mm pitch wire to board connector

A1256WRA-S 1.25mm pitch 90° Dual Row Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Solder Tabs: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A1256 series dual row Housing

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
A1256WRA-S-05PD02 2.50 6.10 HRJ
DC
A1256WRA-S-07PD02 3.75 7.35

A1256WRA-S-09PD02 5.00 8.60

A1256WRA-S-11PD02 6.25 9.85

A1256WRA-S-13PD02 7.50 11.10

A1256WRA-S-15PD02 8.75 12.35

A1256WRA-S-17PD02 10.00 13.60

A1256WRA-S-19PD02 11.25 14.85

A1256WRA-S-21PD02 12.50 16.10

A1256WRA-S-31PD02 18.75 22.35

A1256WRA-S-41PD02 25.00 28.60

Unit:mm
