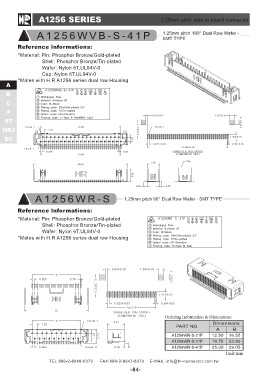

A1256 SERIES 1.25mm pitch wire to board connector

A1256WVB-S-41P 1.25mm pitch 180° Dual Row Wafer -
SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-plated

Shell: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0
*Mates with H.R A1256 series dual row Housing
A

B

C
F

ST

HRJ

DC

A1256WR-S 1.25mm pitch 90° Dual Row Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Shell: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A1256 series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1256WR-S-21P 12.50 16.55

A1256WR-S-31P 18.75 22.80

A1256WR-S-41P 25.00 29.05

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
