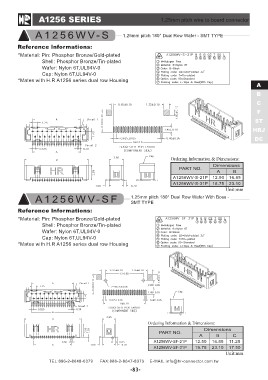

A1256 SERIES 1.25mm pitch wire to board connector

A1256WV-S 1.25mm pitch 180° Dual Row Wafer - SMT TYPE

Reference lnformations: A
B
*Material: Pin: Phosphor Bronze/Gold-plated C
Shell: Phosphor Bronze/Tin-plated F
Wafer: Nylon 6T,UL94V-0 ST
Cap: Nylon 6T,UL94V-0 HRJ
DC
*Mates with H.R A1256 series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1256WV-S-21P 12.50 16.85

A1256WV-S-31P 18.75 23.10

Unit:mm

A1256WV-SF 1.25mm pitch 180° Dual Row Wafer With Boss -
SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Shell: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0

*Mates with H.R A1256 series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A1256WV-SF-21P 12.50 16.85 11.25

A1256WV-SF-31P 18.75 23.10 17.50

Unit:mm
