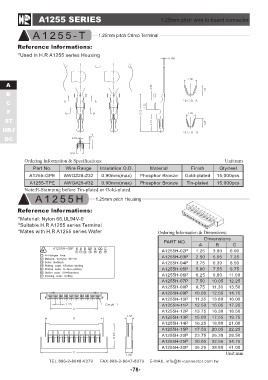

A1255 SERIES 1.25mm pitch wire to board connector
A1255-T 1.25mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A1255 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
QtyU/rneiet:lmm
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Gold-plated 15,000pcs
A1255-GPE AWG#28-#32 0.90mm(max) Phosphor Bronze Tin-plated
A1255-TPE AWG#28-#32 0.90mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-plated
A 1 2 5 5 H 1.25mm pitch Housing
Reference lnformations: Ordering Information & Dimensions:
*Material: Nylon 66,UL94V-0
*Suitable H.R A1255 series Terminal
*Mates with H.R A1255 series Wafer
PART NO. Dimensions
ABC
A1255H-02P 1.25 3.80 6.00
A1255H-03P 2.50 5.05 7.25
A1255H-04P 3.75 6.30 8.50
A1255H-05P 5.00 7.55 9.75
A1255H-06P 6.25 8.80 11.00
A1255H-07P 7.50 10.05 12.25
A1255H-08P 8.75 11.30 13.50
A1255H-09P 10.00 12.55 14.75
A1255H-10P 11.25 13.80 16.00
A1255H-11P 12.50 15.05 17.25
A1255H-12P 13.75 16.30 18.50
A1255H-13P 15.00 17.55 19.75
A1255H-14P 16.25 18.80 21.00
A1255H-15P 17.50 20.05 22.25
A1255H-20P 23.75 26.30 28.50
A1255H-25P 30.00 32.55 34.75
A1255H-30P 36.25 38.80 41.00
Unit:mm
