P. 95

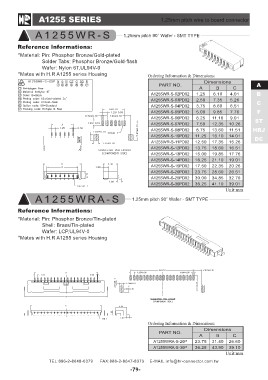

A1255 SERIES 1.25mm pitch wire to board connector
A1255WR-S 1.25mm pitch 90˚ Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-plated Ordering Information & Dimensions:
Solder Tabs: Phosphor Bronze/Gold-flash
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1255 series Housing
PART NO. Dimensions A
ABC B
C
A1255WR-S-02PD02 1.25 6.10 4.01 F
ST
A1255WR-S-03PD02 2.50 7.35 5.26 HRJ
DC
A1255WR-S-04PD02 3.75 8.60 6.51
A1255WR-S-05PD02 5.00 9.85 7.76
A1255WR-S-06PD02 6.25 11.10 9.01
A1255WR-S-07PD02 7.50 12.35 10.26
A1255WR-S-08PD02 8.75 13.60 11.51
A1255WR-S-10PD02 11.25 16.10 14.01
A1255WR-S-11PD02 12.50 17.35 15.26
A1255WR-S-12PD02 13.75 18.60 16.51
A1255WR-S-13PD02 15.00 19.85 17.76
A1255WR-S-14PD02 16.25 21.10 19.01
A1255WR-S-15PD02 17.50 22.35 20.26
A1255WR-S-20PD02 23.75 28.60 26.51
A1255WR-S-25PD02 30.00 34.85 32.76
A1255WR-S-30PD02 36.25 41.10 39.01
Unit:mm
A1255WRA-S 1.25mm pitch 90˚ Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Shell: Brass/Tin-plated
Wafer: LCP,UL94V-0
*Mates with H.R A1255 series Housing
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
A1255WRA-S-20P 23.75 31.40 26.60
A1255WRA-S-30P 36.25 43.90 39.10
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-79-
