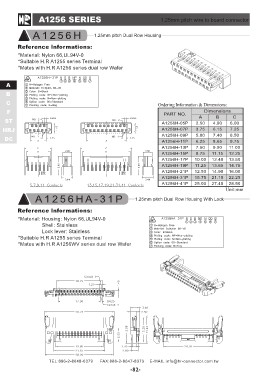

A1256 SERIES 1.25mm pitch wire to board connector

A1256H 1.25mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1255 series Terminal
*Mates with H.R A1256 series dual row Wafer

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F ABC
ST
HRJ A1256H-05P 2.50 4.90 6.00
DC
A1256H-07P 3.75 6.15 7.25

A1256H-09P 5.00 7.40 8.50

A1256H-11P 6.25 8.65 9.75

A1256H-13P 7.50 9.90 11.00

A1256H-15P 8.75 11.15 12.25

A1256H-17P 10.00 12.40 13.50

A1256H-19P 11.25 13.65 14.75

A1256H-21P 12.50 14.90 16.00

A1256H-31P 18.75 21.15 22.25

A1256H-41P 25.00 27.40 28.50

Unit:mm

A1256HA-31P 1.25mm pitch Dual Row Housing With Lock

Reference lnformations:

*Material: Housing: Nylon 66,UL94V-0
Shell: Stainless
Lock lever: Stainless

*Suitable H.R A1255 series Terminal
*Mates with H.R A1256WV series dual row Wafer

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-82-
