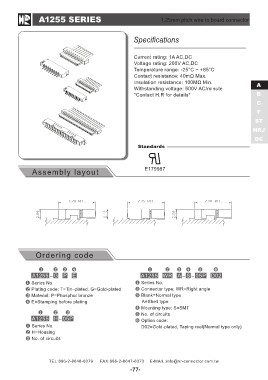

A1255 SERIES 1.25mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 1A AC,DC A
Voltage rating: 200V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 40mΩ Max. F
Insulation resistance: 100MΩ Min. ST
Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987

Ordering code A1255 WR A - S - 05P D02

A1255 - G P E Series No.
Connector type: WR=Right angle
Series No. Blank=Normal type
Plating code: T=Tin–plated, G=Gold-plated A=Shell type
Material: P=Phosphor bronze Mounting type: S=SMT
E=Stamping before plating No. of circuits
Option code:
A1255 H - 05P D02=Gold-plated, Taping reel(Normal type only)

Series No.
H=Housing
No. of circuits
