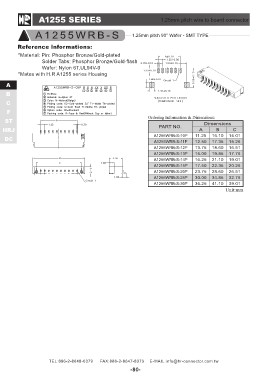

A1255 SERIES 1.25mm pitch wire to board connector

A 01 82 05 05 HWIR B - S 1.25mm pitch 90° Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Solder Tabs: Phosphor Bronze/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A1255 series Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F ABC
ST
HRJ A1255WRB-S-10P 11.25 16.10 14.01
DC
A1255WRB-S-11P 12.50 17.35 15.26

A1255WRB-S-12P 13.75 18.60 16.51

A1255WRB-S-13P 15.00 19.85 17.76

A1255WRB-S-14P 16.25 21.10 19.01

A1255WRB-S-15P 17.50 22.35 20.26

A1255WRB-S-20P 23.75 28.60 26.51

A1255WRB-S-25P 30.00 34.85 32.76

A1255WRB-S-30P 36.25 41.10 39.01

Unit:mm
