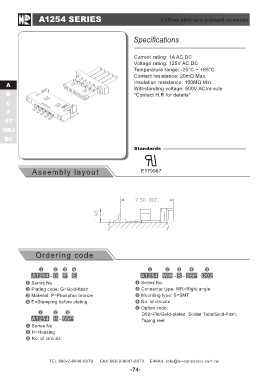

A1254 SERIES                  1.25mm pitch wire to board connector

  A                          Specifications
  B
  C                          Current rating: 1A AC,DC
  F                          Voltage rating: 125V AC,DC
 ST                          Temperature range: -25°C ~ +85°C
HRJ                          Contact resistance: 20mΩ Max.
 DC                          Insulation resistance: 100MΩ Min.
                             Withstanding voltage: 500V AC/minute
           Assembly layout   *Contact H.R for details*

                             Standards

                                 E179987

 Ordering code               A1254 WR - S - 05P D02

A1254 - G P E                Series No.
                             Connector type: WR=Right angle
Series No.                   Mounting type: S=SMT
Plating code: G=Gold-flash   No. of circuits
Material: P=Phosphor bronze  Option code:
E=Stamping before plating    D02=Pin/Gold-plated, Solder Tabs/Gold-flash,
                             Taping reel
A1254 H - 05P

Series No.
H=Housing
No. of circuits

TEL:886-2-8648-0379          FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
