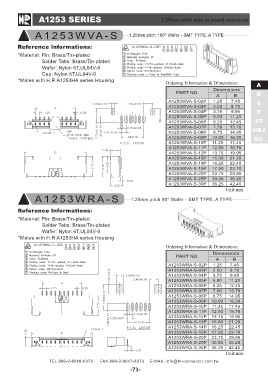

A1253 SERIES 1.25mm pitch wire to board connector
A 1 2 5 3 W V A - S 1.25mm pitch 180° Wafer - SMT TYPE, A TYPE
Reference lnformations: Ordering Information & Dimensions: A
*Material: Pin: Brass/Tin-plated B
PART NO. Dimensions C
Solder Tabs: Brass/Tin-plated AB F
Wafer: Nylon 6T,UL94V-0 ST
Cap: Nylon 6T,UL94V-0 A1253WVA-S-02P 1.25 7.45 HRJ
*Mates with H.R A1253HA series Housing A1253WVA-S-03P 2.50 8.70 DC
A1253WVA-S-04P 3.75 9.95
A1253WRA-S A1253WVA-S-05P 5.00 11.20
A1253WVA-S-06P 6.25 12.45
A1253WVA-S-07P 7.50 13.70
A1253WVA-S-08P 8.75 14.95
A1253WVA-S-09P 10.00 16.20
A1253WVA-S-10P 11.25 17.45
A1253WVA-S-11P 12.50 18.70
A1253WVA-S-12P 13.75 19.95
A1253WVA-S-13P 15.00 21.20
A1253WVA-S-14P 16.25 22.45
A1253WVA-S-15P 17.50 23.70
A1253WVA-S-20P 23.75 29.95
A1253WVA-S-25P 30.00 36.20
A1253WVA-S-30P 36.25 42.45
Unit:mm
1.25mm pitch 90° Wafer - SMT TYPE, A TYPE
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1253HA series Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A1253WRA-S-02P 1.25 7.45
A1253WRA-S-03P 2.50 8.70
A1253WRA-S-04P 3.75 9.95
A1253WRA-S-05P 5.00 11.20
A1253WRA-S-06P 6.25 12.45
A1253WRA-S-07P 7.50 13.70
A1253WRA-S-08P 8.75 14.95
A1253WRA-S-09P 10.00 16.20
A1253WRA-S-10P 11.25 17.45
A1253WRA-S-11P 12.50 18.70
A1253WRA-S-12P 13.75 19.95
A1253WRA-S-13P 15.00 21.20
A1253WRA-S-14P 16.25 22.45
A1253WRA-S-15P 17.50 23.70
A1253WRA-S-20P 23.75 29.95
A1253WRA-S-25P 30.00 36.20
A1253WRA-S-30P 36.25 42.45
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-73-
