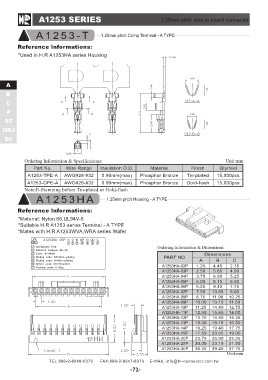

A1253 SERIES 1.25mm pitch wire to board connector

A1253-T 1.25mm pitch Crimp Terminal - A TYPE

Reference lnformations:
*Used in H.R A1253HA series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
A1253-TPE-A AWG#28-#32 0.90mm(max) Phosphor Bronze Gold-flash

A1253-GPE-A AWG#28-#32 0.90mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-flash

A1253HA 1.25mm pitch Housing - A TYPE

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1253 series Terminal - A TYPE
*Mates with H.R A1253WVA,WRA series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

A1253HA-02P ABC
A1253HA-03P
A1253HA-04P 1.25 4.40 2.75
A1253HA-05P 2.50 5.65 4.00
A1253HA-06P 3.75 6.90 5.25
A1253HA-07P 5.00 8.15 6.50
A1253HA-08P 6.25 9.40 7.75
A1253HA-09P 7.50 10.65 9.00
A1253HA-10P 8.75 11.90 10.25
A1253HA-11P 10.00 13.15 11.50
A1253HA-12P 11.25 14.40 12.75
A1253HA-13P 12.50 15.65 14.00
A1253HA-14P 13.75 16.90 15.25
A1253HA-15P 15.00 18.15 16.50
A1253HA-20P 16.25 19.40 17.75
A1253HA-25P 17.50 20.65 19.00
A1253HA-30P 23.75 26.90 25.25
30.00 33.15 31.50
36.25 39.40 37.75

Unit:mm
