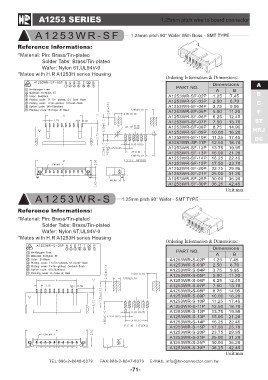

A1253 SERIES 1.25mm pitch wire to board connector

A1253WR-SF 1.25mm pitch 90° Wafer With Boss - SMT TYPE

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
PART NO. Dimensions A
Solder Tabs: Brass/Tin-plated B
Wafer: Nylon 6T,UL94V-0 A1253WR-SF-02P AB C
*Mates with H.R A1253H series Housing A1253WR-SF-03P F
A1253WR-SF-04P 1.25 7.45 ST
A1253WR-S A1253WR-SF-05P 2.50 8.70 HRJ
A1253WR-SF-06P 3.75 9.95 DC
A1253WR-SF-07P 5.00 11.20
A1253WR-SF-08P 6.25 12.45
A1253WR-SF-09P 7.50 13.70
A1253WR-SF-10P 8.75 14.95
A1253WR-SF-11P 10.00 16.20
A1253WR-SF-12P 11.25 17.45
A1253WR-SF-13P 12.50 18.70
A1253WR-SF-14P 13.75 19.95
A1253WR-SF-15P 15.00 21.20
A1253WR-SF-20P 16.25 22.45
A1253WR-SF-21P 17.50 23.70
A1253WR-SF-25P 23.75 29.95
A1253WR-SF-30P 25.00 31.20
30.00 36.20
36.25 42.45

Unit:mm

1.25mm pitch 90° Wafer - SMT TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Brass/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A1253H series Housing

PART NO. Dimensions

A1253WR-S-02P AB
A1253WR-S-03P
A1253WR-S-04P 1.25 7.45
A1253WR-S-05P 2.50 8.70
A1253WR-S-06P 3.75 9.95
A1253WR-S-07P 5.00 11.20
A1253WR-S-08P 6.25 12.45
A1253WR-S-09P 7.50 13.70
A1253WR-S-10P 8.75 14.95
A1253WR-S-11P 10.00 16.20
A1253WR-S-12P 11.25 17.45
A1253WR-S-13P 12.50 18.70
A1253WR-S-14P 13.75 19.95
A1253WR-S-15P 15.00 21.20
A1253WR-S-20P 16.25 22.45
A1253WR-S-21P 17.50 23.70
A1253WR-S-25P 23.75 29.95
A1253WR-S-30P 25.00 31.20
30.00 36.20
36.25 42.45

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-71-
