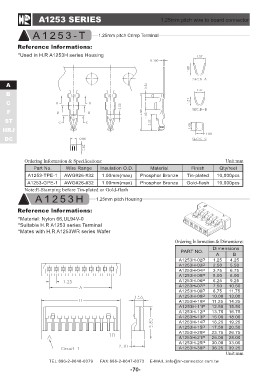

A1253 SERIES 1.25mm pitch wire to board connector

A1253-T 1.25mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1253H series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated 10,000pcs
A1253-TPE-1 AWG#26-#32 1.00mm(max) Phosphor Bronze Gold-flash

A1253-GPE-1 AWG#26-#32 1.00mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash

A1253H 1.25mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1253 series Terminal
*Mates with H.R A1253WR series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

A1253H-02P AB
A1253H-03P
A1253H-04P 1.25 4.25
A1253H-05P 2.50 5.50
A1253H-06P 3.75 6.75
A1253H-07P 5.00 8.00
A1253H-08P 6.25 9.25
A1253H-09P 7.50 10.50
A1253H-10P 8.75 11.75
A1253H-11P 10.00 13.00
A1253H-12P 11.25 14.25
A1253H-13P 12.50 15.50
A1253H-14P 13.75 16.75
A1253H-15P 15.00 18.00
A1253H-20P 16.25 19.25
A1253H-21P 17.50 20.50
A1253H-25P 23.75 26.75
A1253H-30P 25.00 28.00
30.00 33.00
36.25 39.25

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-70-
