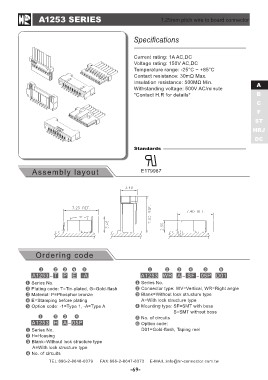

A1253 SERIES 1.25mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 1A AC,DC A
Voltage rating: 150V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 30mΩ Max. F
Insulation resistance: 500MΩ Min. ST
Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987

Ordering code

A1253 - T P E -A A1253 WR A - SF - 05P D01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze Blank=Without lock structure type
E=Stamping before plating A=With lock structure type
Option code: -1=Type 1, -A=Type A Mounting type: SF=SMT with boss

A1253 H A - 05P S=SMT without boss
No. of circuits
Series No. Option code:
H=Housing D01=Gold-flash, Taping reel
Blank=Without lock structure type
A=With lock structure type
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-69-
