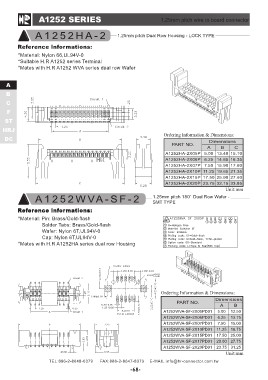

A1252 SERIES 1.25mm pitch wire to board connector

A 1 2 5 2 H A - 2 1.25mm pitch Dual Row Housing - LOCK TYPE

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1252 series Terminal
*Mates with H.R A1252 WVA series dual row Wafer

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F ABC
ST
HRJ A1252HA-2X05P 5.00 13.40 15.10
DC
A1252HA-2X06P 6.25 14.65 16.35
A 1 2 5 2 W VA - S F - 2
A1252HA-2X07P 7.50 15.90 17.60
Reference lnformations:
*Material: Pin: Brass/Gold-flash A1252HA-2X10P 11.25 19.65 21.35

Solder Tabs: Brass/Gold-flash A1252HA-2X15P 17.50 25.90 27.60
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0 A1252HA-2X20P 23.75 32.15 33.85
*Mates with H.R A1252HA series dual row Housing
Unit:mm

1.25mm pitch 180˚ Dual Row Wafer -
SMT TYPE

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1252WVA-SF-2X05PD01 5.00 12.50

A1252WVA-SF-2X06PD01 6.25 13.75

A1252WVA-SF-2X07PD01 7.50 15.00

A1252WVA-SF-2X10PD01 11.25 18.75

A1252WVA-SF-2X15PD01 17.50 25.00

A1252WVA-SF-2X17PD01 20.00 27.75

A1252WVA-SF-2X20PD01 23.75 31.25

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-68-
