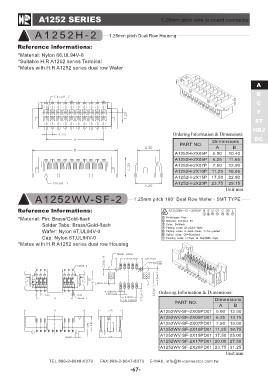

A1252 SERIES 1.25mm pitch wire to board connector

A1252H-2 1.25mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1252 series Terminal
*Mates with H.R A1252 series dual row Wafer

Ordering Information & Dimensions: A
B
Dimensions C
AB F
ST
5.00 10.40 HRJ
6.25 11.65 DC
7.50 12.90
PART NO. 11.25 16.65
17.50 22.90
A1252H-2X05P 23.75 29.15
A1252H-2X06P
A1252H-2X07P Unit:mm
A1252H-2X10P
A1252H-2X15P
A1252H-2X20P

A1252WV-SF-2 1.25mm pitch 180˚ Dual Row Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Solder Tabs: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0

*Mates with H.R A1252 series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1252WV-SF-2X05PD01 5.00 12.50

A1252WV-SF-2X06PD01 6.25 13.75
A1252WV-SF-2X07PD01 7.50 15.00

A1252WV-SF-2X10PD01 11.25 18.75
A1252WV-SF-2X15PD01 17.50 25.00

A1252WV-SF-2X17PD01 20.00 27.50
A1252WV-SF-2X20PD01 23.75 31.25

Unit:mm
