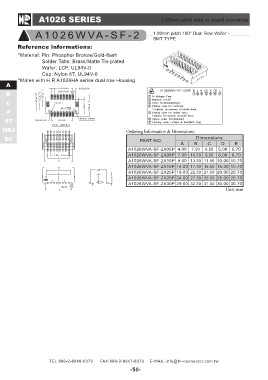

A1026 SERIES 1.00mm pitch wire to board connector
A 01 80 02 06 HWIV A - S F - 2 1.00mm pitch 180° Dual Row Wafer -
SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Matte Tin-plated
Wafer: LCP, UL94V-0
Cap: Nylon 6T, UL94V-0
*Mates with H.R A1026HA serise dual row Housing
A
B
C
F
ST
HRJ Ordering Information & Dimensions:
DC
PART NO. Dimensions
ABCDE
A1026WVA-SF-2X05P 4.00 7.30 6.50 5.00 5.70
A1026WVA-SF-2X08P 7.00 10.30 9.50 8.00 8.70
A1026WVA-SF-2X10P 9.00 13.30 11.50 10.00 10.70
A1026WVA-SF-2X15P 14.00 17.30 16.50 15.00 15.70
A1026WVA-SF-2X20P 19.00 22.30 21.50 20.00 20.70
A1026WVA-SF-2X25P 24.00 27.30 26.50 25.00 25.70
A1026WVA-SF-2X30P 29.00 32.30 31.50 30.00 30.70
Unit:mm
