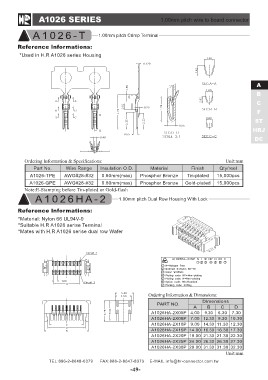

A1026 SERIES 1.00mm pitch wire to board connector

AA10082060-HTI 1.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1026 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
15,000pcs
A1026-TPE AWG#28-#32 0.80mm(max) Phosphor Bronze Tin-plated

A1026-GPE AWG#28-#32 0.80mm(max) Phosphor Bronze Gold-plated

Note:E-Stamping before Tin-plated or Gold-flash

A 10 08 02 60 H AI - 2 1.00mm pitch Dual Row Housing With Lock

Reference lnformations:

*Material: Nylon 66 UL94V-0
*Suitable H.R A1026 serise Terminal
*Mates with H.R A1026 serise dual row Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
ABCD

A1026HA-2X05P 4.00 9.30 6.30 7.30

A1026HA-2X08P 7.00 12.30 9.30 10.30

A1026HA-2X10P 9.00 14.30 11.30 12.30

A1026HA-2X15P 14.00 16.30 16.30 17.30

A1026HA-2X20P 19.00 21.30 21.30 22.30

A1026HA-2X25P 24.00 26.30 26.30 27.30

A1026HA-2X30P 29.00 31.30 31.30 32.30

Unit:mm
