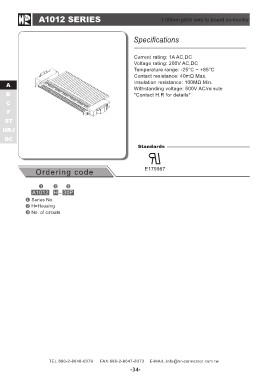

A1012 SERIES 1.00mm pitch wire to board connector
A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 200V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 40mΩ Max.
DC Insulation resistance: 100MΩ Min.
Withstanding voltage: 500V AC/minute
AOsrsdeemribnlgy lcaoydoeut *Contact H.R for details*
A1012 H - 30P Standards
Series No. E179987
H=Housing
No. of circuits
