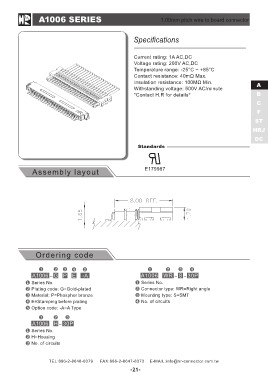

A1006 SERIES               1.00mm pitch wire to board connector
Assembly layout
                             Specifications

                             Current rating: 1A AC,DC                               A
                             Voltage rating: 200V AC,DC                             B
                             Temperature range: -25°C ~ +85°C                       C
                             Contact resistance: 40mΩ Max.                          F
                             Insulation resistance: 100MΩ Min.                     ST
                             Withstanding voltage: 500V AC/minute                 HRJ
                             *Contact H.R for details*                             DC

                               Standards

                             E179987

Ordering code

A1006 - G P E -A             A1006 WR - S - 30P

Series No.                   Series No.
Plating code: G=Gold-plated  Connector type: WR=Right angle
Material: P=Phosphor bronze  Mounting type: S=SMT
E=Stamping before plating    No. of circuits
Option code: -A=A Type

A1006 H - 30P

Series No.
H=Housing
No. of circuits

TEL:886-2-8648-0379          FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
