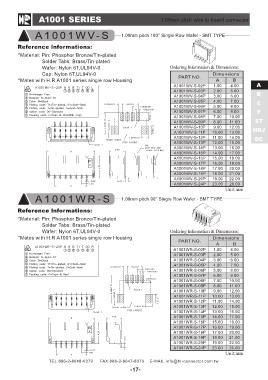

A1001 SERIES 1.00mm pitch wire to board connector

A1001WV-S 1.00mm pitch 180° Single Row Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated Ordering Information & Dimensions:
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0 PART NO. Dimensions A
Cap: Nylon 6T,UL94V-0 B
A1001WV-S-02P AB C
*Mates with H.R A1001 series single row Housing A1001WV-S-03P F
A1001WV-S-04P 1.00 4.00 ST
A1001WV-S-05P 2.00 5.00 HRJ
A1001WV-S-06P 3.00 6.00 DC
A1001WV-S-07P 4.00 7.00
A1001WV-S-08P 5.00 8.00
A1001WV-S-09P 6.00 9.00
A1001WV-S-10P 7.00 10.00
A1001WV-S-11P 8.00 11.00
A1001WV-S-12P 9.00 12.00
A1001WV-S-13P 10.00 13.00
A1001WV-S-14P 11.00 14.00
A1001WV-S-15P 12.00 15.00
A1001WV-S-16P 13.00 16.00
A1001WV-S-17P 14.00 17.00
A1001WV-S-18P 15.00 18.00
A1001WV-S-19P 16.00 19.00
A1001WV-S-20P 17.00 20.00
A1001WV-S-24P 18.00 21.00
19.00 22.00
23.00 26.00

Unit:mm

A 1 0 0 1 W R - S 1.00mm pitch 90° Single Row Wafer - SMT TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Phosphor Bronze/Tin-plated PART NO. Dimensions
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0 A1001WR-S-02P AB
A1001WR-S-03P
*Mates with H.R A1001 series single row Housing A1001WR-S-04P 1.00 4.00
A1001WR-S-05P 2.00 5.00
A1001WR-S-06P 3.00 6.00
A1001WR-S-07P 4.00 7.00
A1001WR-S-08P 5.00 8.00
A1001WR-S-09P 6.00 9.00
A1001WR-S-10P 7.00 10.00
A1001WR-S-11P 8.00 11.00
A1001WR-S-12P 9.00 12.00
A1001WR-S-13P 10.00 13.00
A1001WR-S-14P 11.00 14.00
A1001WR-S-15P 12.00 15.00
A1001WR-S-16P 13.00 16.00
A1001WR-S-17P 14.00 17.00
A1001WR-S-18P 15.00 18.00
A1001WR-S-19P 16.00 19.00
A1001WR-S-20P 17.00 20.00
A1001WR-S-24P 18.00 21.00
19.00 22.00
23.00 26.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-17-
