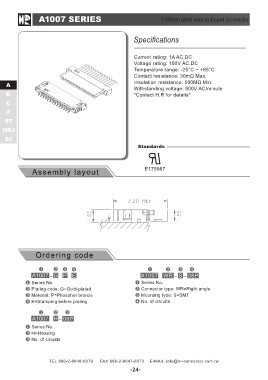

A1007 SERIES                   1.00mm pitch wire to board connector

  A                          Specifications
  B
  C                          Current rating: 1A AC,DC
  F                          Voltage rating: 100V AC,DC
 ST                          Temperature range: -25°C ~ +85°C
HRJ                          Contact resistance: 30mΩ Max.
 DC                          Insulation resistance: 500MΩ Min.
                             Withstanding voltage: 500V AC/minute
           Assembly layout   *Contact H.R for details*

                               Standards

                                   E179987

 Ordering code               A1007 WR - S - 08P

A1007 - G P E                Series No.
                             Connector type: WR=Right angle
Series No.                   Mounting type: S=SMT
Plating code: G=Gold-plated  No. of circuits
Material: P=Phosphor bronze
E=Stamping before plating

A1007 H - 08P

Series No.
H=Housing
No. of circuits
