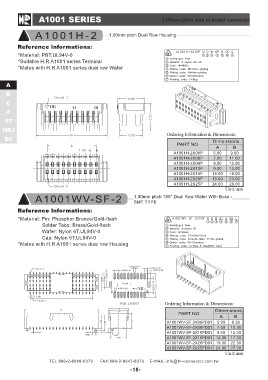

A1001 SERIES 1.00mm pitch wire to board connector

A 1 0 0 1 H - 2 1.00mm pitch Dual Row Housing

Reference lnformations:

*Material: PBT,UL94V-0
*Suitable H.R A1001 series Terminal
*Mates with H.R A1001 series dual row Wafer

A

B

C

F

ST

HRJ Ordering Information & Dimensions:
DC
Dimensions
PART NO.
AB
A1001H-2X06P
A1001H-2X08P 5.00 9.00
A1001H-2X09P 7.00 11.00
A1001H-2X10P 8.00 12.00
A1001H-2X15P 9.00 13.00
A1001H-2X20P 14.00 18.00
A1001H-2X25P 19.00 23.00
24.00 28.00

Unit:mm

A1001WV-SF-2 1.00mm pitch 180° Dual Row Wafer With Boss -
SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0

*Mates with H.R A1001 series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1001WV-SF-2X06PD01 5.00 8.30

A1001WV-SF-2X08PD01 7.00 10.30

A1001WV-SF-2X10PD01 9.00 12.30

A1001WV-SF-2X15PD01 14.00 17.30

A1001WV-SF-2X20PD01 19.00 22.30

A1001WV-SF-2X25PD01 24.00 27.30

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
