P. 41

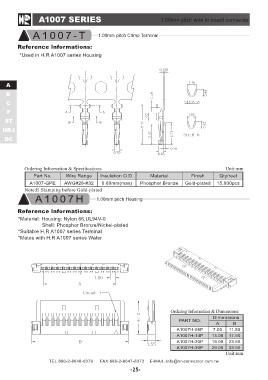

A1007 SERIES                                        1.00mm pitch wire to board connector

     A1007-T              1.00mm pitch Crimp Terminal

     Reference lnformations:
      *Used in H.R A1007 series Housing

  A
  B
  C
  F
 ST
HRJ
 DC

     Ordering Information & Specifications:                                          Unit:mm
                                                                                 Qty/reel
     Part No.  Wire Range Insulation O.D.                Material      Finish   15,000pcs
                                                                   Gold-plated
     A1007-GPE AWG#28-#32 0.60mm(max) Phosphor Bronze

     Note:E-Stamping before Gold-plated

     A1007H               1.00mm pitch Housing

     Reference lnformations:

     *Material: Housing: Nylon 66,UL94V-0
                   Shell: Phosphor Bronze/Nickel-plated

     *Suitable H.R A1007 series Terminal
     *Mates with H.R A1007 series Wafer

                                                                   Ordering Information & Dimensions:

                                                                   PART NO.     Dimensions
                                                                                  AB

                                                                   A1007H-08P 7.00 11.50

                                                                   A1007H-14P 13.00 17.50

                                                                   A1007H-20P 19.00 23.50

                                                                   A1007H-30P 29.00 33.50

                                                                                          Unit:mm

     TEL:886-2-8648-0379  FAX:886-2-8647-8373            E-MAIL:info@hr-connector.com.tw

                                           -25-
