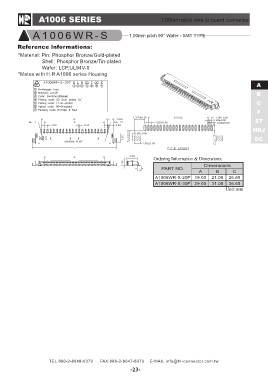

A1006 SERIES 1.00mm pitch wire to board connector
A1006WR-S 1.00mm pitch 90° Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-plated
Shell: Phosphor Bronze/Tin-plated
Wafer: LCP,UL94V-0
*Mates with H.R A1006 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
A1006WR-S-20P 19.00 21.00 26.65
A1006WR-S-30P 29.00 31.00 36.65
Unit:mm
