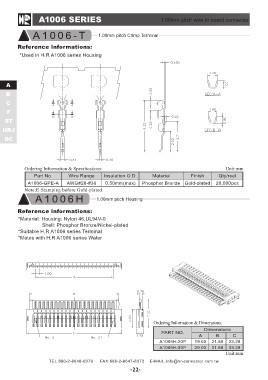

A1006 SERIES 1.00mm pitch wire to board connector

A1006-T 1.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1006 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 20,000pcs
Gold-plated
A1006-GPE-A AWG#28-#36 0.50mm(max) Phosphor Bronze

Note:E-Stamping before Gold-plated

A1006H 1.00mm pitch Housing

Reference lnformations:

*Material: Housing: Nylon 46,UL94V-0
Shell: Phosphor Bronze/Nickel-plated

*Suitable H.R A1006 series Terminal
*Mates with H.R A1006 series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A1006H-20P 19.00 21.88 23.28

A1006H-30P 29.00 31.88 33.28

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
