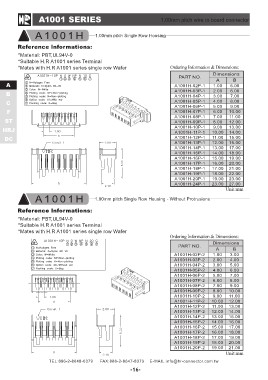

A1001 SERIES 1.00mm pitch wire to board connector

A1001H 1.00mm pitch Single Row Housing

Reference lnformations:

*Material: PBT,UL94V-0 Ordering Information & Dimensions:
*Suitable H.R A1001 series Terminal
*Mates with H.R A1001 series single row Wafer PART NO. Dimensions

A A1001H-02P-1 AB
B A1001H-03P-1
C A1001H-04P-1 1.00 5.00
F A1001H-05P-1 2.00 6.00
ST A1001H-06P-1 3.00 7.00
HRJ A1001H-07P-1 4.00 8.00
DC A1001H-08P-1 5.00 9.00
A1001H-09P-1 6.00 10.00
A1001H-10P-1 7.00 11.00
A1001H-11P-1 8.00 12.00
A1001H-12P-1 9.00 13.00
A1001H-13P-1 10.00 14.00
A1001H-14P-1 11.00 15.00
A1001H-15P-1 12.00 16.00
A1001H-16P-1 13.00 17.00
A1001H-17P-1 14.00 18.00
A1001H-18P-1 15.00 19.00
A1001H-19P-1 16.00 20.00
A1001H-20P-1 17.00 21.00
A1001H-24P-1 18.00 22.00
19.00 23.00
23.00 27.00

Unit:mm

A1001H 1.00mm pitch Single Row Housing - Without Protrusions

Reference lnformations: Ordering Information & Dimensions:

*Material: PBT,UL94V-0
*Suitable H.R A1001 series Terminal
*Mates with H.R A1001 series single row Wafer

PART NO. Dimensions

A1001H-02P-2 AB
A1001H-03P-2
A1001H-04P-2 1.00 3.00
A1001H-05P-2 2.00 4.00
A1001H-06P-2 3.00 5.00
A1001H-07P-2 4.00 6.00
A1001H-08P-2 5.00 7.00
A1001H-09P-2 6.00 8.00
A1001H-10P-2 7.00 9.00
A1001H-11P-2 8.00 10.00
A1001H-12P-2 9.00 11.00
A1001H-13P-2 10.00 12.00
A1001H-14P-2 11.00 13.00
A1001H-15P-2 12.00 14.00
A1001H-16P-2 13.00 15.00
A1001H-17P-2 14.00 16.00
A1001H-18P-2 15.00 17.00
A1001H-19P-2 16.00 18.00
A1001H-20P-2 17.00 19.00
18.00 20.00
19.00 21.00

Unit:mm
