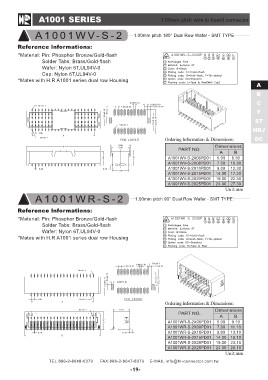

A1001 SERIES 1.00mm pitch wire to board connector
A 1 0 0 1 W V - S - 2 1.00mm pitch 180° Dual Row Wafer - SMT TYPE A
B
Reference lnformations: C
F
*Material: Pin: Phosphor Bronze/Gold-flash ST
Solder Tabs: Brass/Gold-flash HRJ
Wafer: Nylon 6T,UL94V-0 DC
Cap: Nylon 6T,UL94V-0
*Mates with H.R A1001 series dual row Housing
Ordering Information & Dimensions:
PART NO. Dimensions
A1001WV-S-2X06PD01 AB
A1001WV-S-2X08PD01 5.00 8.30
A1001WV-S-2X10PD01 7.00 10.30
A1001WV-S-2X15PD01 9.00 12.30
A1001WV-S-2X20PD01 14.00 17.30
A1001WV-S-2X25PD01 19.00 22.30
24.00 27.30
Unit:mm
A1001WR-S-2 1.00mm pitch 90° Dual Row Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1001 series dual row Housing
Ordering Information & Dimensions:
PART NO. Dimensions
A1001WR-S-2X06PD01 AB
A1001WR-S-2X08PD01 5.00 9.10
A1001WR-S-2X10PD01 7.00 11.10
A1001WR-S-2X15PD01 9.00 13.10
A1001WR-S-2X20PD01 14.00 18.10
A1001WR-S-2X25PD01 19.00 23.10
24.00 28.10
Unit:mm
