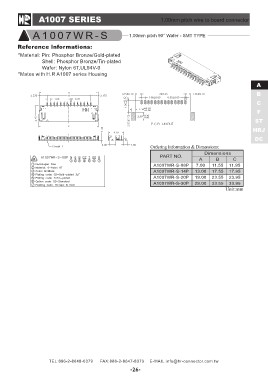

A1007 SERIES 1.00mm pitch wire to board connector
A1007WR-S 1.00mm pitch 90° Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-plated
Shell: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1007 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
A1007WR-S-08P 7.00 11.55 11.95
A1007WR-S-14P 13.00 17.55 17.95
A1007WR-S-20P 19.00 23.55 23.95
A1007WR-S-30P 29.00 33.55 33.95
Unit:mm
