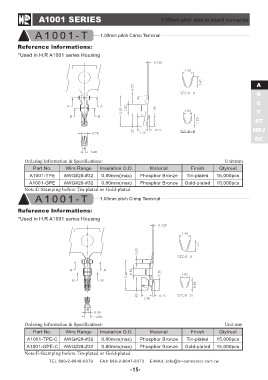

A1008010 SSEERRIIEESS 1.0205mm pitch wire to board connector

A 01 80 0 01 H- TI 1.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1001 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
A1001-TPE AWG#28-#32 0.80mm(max) Phosphor Bronze Gold-plated

A1001-GPE AWG#28-#32 0.80mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-plated

A 01 80 0 01 H- TI 1.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1001 series Housing

Ordering Information & Specifications: Unit:mm

Part No. Wire Range Insulation O.D. Material Finish Qty/reel

A1001-TPE-C AWG#28-#32 0.80mm(max) Phosphor Bronze Tin-plated 15,000pcs

A1001-GPE-C AWG#28-#32 0.80mm(max) Phosphor Bronze Gold-plated 15,000pcs
Note:E-Stamping before Tin-plated or Gold-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-15-
