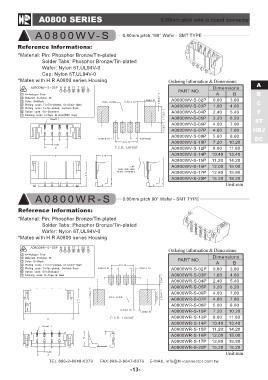

A0800 SERIES 0.80mm pitch wire to board connector

A0800WV-S 0.80mm pitch 180° Wafer - SMT TYPE

Reference lnformations: Ordering Information & Dimensions: A
B
*Material: Pin: Phosphor Bronze/Tin-plated C
Solder Tabs: Phosphor Bronze/Tin-plated F
Wafer: Nylon 6T,UL94V-0 ST
Cap: Nylon 6T,UL94V-0 HRJ
DC
*Mates with H.R A0800 series Housing

PART NO. Dimensions
AB

A0800WV-S-02P 0.80 3.80

A0800WV-S-03P 1.60 4.60

A0800WV-S-04P 2.40 5.40

A0800WV-S-05P 3.20 6.20

A0800WV-S-06P 4.00 7.00

A0800WV-S-07P 4.80 7.80

A0800WV-S-08P 5.60 8.60

A0800WV-S-10P 7.20 10.20

A0800WV-S-12P 8.80 11.80

A0800WV-S-14P 10.40 13.40

A0800WV-S-15P 11.20 14.20

A0800WV-S-16P 12.00 15.00

A0800WV-S-17P 12.80 15.80

A0800WV-S-20P 15.20 18.20

Unit:mm

A0800WR-S 0.80mm pitch 90° Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A0800 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A0800WR-S-02P 0.80 3.80

A0800WR-S-03P 1.60 4.60

A0800WR-S-04P 2.40 5.40

A0800WR-S-05P 3.20 6.20

A0800WR-S-06P 4.00 7.00

A0800WR-S-07P 4.80 7.80

A0800WR-S-08P 5.60 8.60

A0800WR-S-10P 7.20 10.20

A0800WR-S-12P 8.80 11.80

A0800WR-S-14P 10.40 13.40

A0800WR-S-15P 11.20 14.20

A0800WR-S-16P 12.00 15.00

A0800WR-S-17P 12.80 15.80

A0800WR-S-20P 15.20 18.20

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-13-
