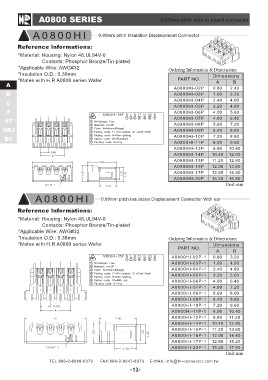

A0800 SERIES 0.80mm pitch wire to board connector

A0800HI 0.80mm pitch Insulation Displacement Connector

Reference lnformations: Ordering Information & Dimensions:
*Material: Housing: Nylon 46,UL94V-0
PART NO. Dimensions
Contacts: Phosphor Bronze/Tin-plated AB
*Applicable Wire: AWG#32
*Insulation O.D.: 0.38mm A0800HI-02P 0.80 2.40
*Mates with H.R A0800 series Wafer
A A0800HI-03P 1.60 3.20

B A0800HI-04P 2.40 4.00

C A0800HI-05P 3.20 4.80

F A0800HI-06P 4.00 5.60

ST A0800HI-07P 4.80 6.40

HRJ A0800HI-08P 5.60 7.20

DC A0800HI-09P 6.40 8.00

A0800HI-10P 7.20 8.80

A0800HI-11P 8.00 9.60

A0800HI-12P 8.80 10.40

A0800HI-14P 10.40 12.00

A0800HI-15P 11.20 12.80

A0800HI-16P 12.00 13.60

A0800HI-17P 12.80 14.40

A0800HI-20P 15.20 16.80

Unit:mm

A0800HI 0.80mm pitch Insulation Displacement Connector With ear

Reference lnformations: Ordering Information & Dimensions:

*Material: Housing: Nylon 46,UL94V-0 PART NO. Dimensions
Contacts: Phosphor Bronze/Tin-plated AB

*Applicable Wire: AWG#32
*Insulation O.D.: 0.38mm
*Mates with H.R A0800 series Wafer

A0800HI-02P-1 0.80 3.20

A0800HI-03P-1 1.60 4.00

A0800HI-04P-1 2.40 4.80

A0800HI-05P-1 3.20 5.60

A0800HI-06P-1 4.00 6.40

A0800HI-07P-1 4.80 7.20

A0800HI-08P-1 5.60 8.00

A0800HI-09P-1 6.40 8.80

A0800HI-10P-1 7.20 9.60

A0800HI-11P-1 8.00 10.40

A0800HI-12P-1 8.80 11.20

A0800HI-14P-1 10.40 12.80

A0800HI-15P-1 11.20 13.60

A0800HI-16P-1 12.00 14.40

A0800HI-17P-1 12.80 15.20

A0800HI-20P-1 15.20 17.60

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
