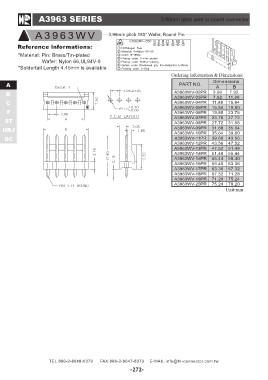

A3963 SERIES 3.96mm pitch wire to board connector

A 03 89 06 03 HWIV 3.96mm pitch 180° Wafer, Round Pin

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
PART NO. Dimensions
Wafer: Nylon 66,UL94V-0 AB
*Soldertail Length 4.45mm is available A3963WV-02PR
A3963WV-03PR 3.96 7.92
A A3963WV-04PR 7.92 11.88
B A3963WV-05PR 11.88 15.84
C A3963WV-06PR 15.84 19.80
F A3963WV-07PR 19.80 23.76
ST A3963WV-08PR 23.76 27.72
HRJ A3963WV-09PR 27.72 31.68
DC A3963WV-10PR 31.68 35.64
A3963WV-11PR 35.64 39.60
A3963WV-12PR 39.60 43.56
A3963WV-13PR 43.56 47.52
A3963WV-14PR 47.52 51.48
A3963WV-15PR 51.48 55.44
A3963WV-16PR 55.44 59.40
A3963WV-17PR 59.40 63.36
A3963WV-18PR 63.36 67.32
A3963WV-19PR 67.32 71.28
A3963WV-20PR 71.28 75.24
75.24 79.20

Unit:mm
