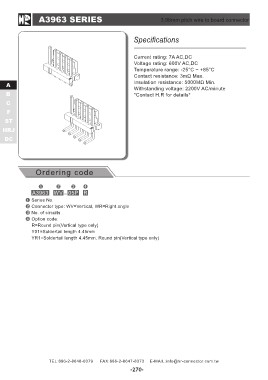

A3963 SERIES                 3.96mm pitch wire to board connector

  A                        Specifications
  B
  C                        Current rating: 7A AC,DC
  F                        Voltage rating: 600V AC,DC
 ST                        Temperature range: -25°C ~ +85°C
HRJ                        Contact resistance: 3mΩ Max.
 DC                        Insulation resistance: 5000MΩ Min.
                           Withstanding voltage: 2200V AC/minute
                           *Contact H.R for details*

 Ordering code

A3963 WV - 05P R

Series No.
Connector type: WV=Vertical, WR=Right angle
No. of circuits
Option code:
R=Round pin(Vertical type only)
Y01=Soldertail length 4.45mm
YR1=Soldertail length 4.45mm, Round pin(Vertical type only)
