P. 293

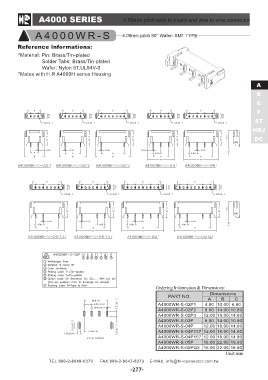

A4000 SERIES 4.00mm pitch wire to board and wire to wire connector
A4000WR-S 4.00mm pitch 90° Wafer- SMT TYPE
Reference lnformations: A
*Material: Pin: Brass/Tin-plated B
C
Solder Tabs: Brass/Tin-plated F
Wafer: Nylon 6T,UL94V-0 ST
*Mates with H.R A4000H series Housing HRJ
DC
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
A4000WR-S-02P1 4.00 10.00 6.80
A4000WR-S-02P2 8.00 14.00 10.80
A4000WR-S-02P3 12.00 18.00 14.80
A4000WR-S-03P 8.00 14.00 10.80
A4000WR-S-04P 12.00 18.00 14.80
A4000WR-S-04P137 12.00 18.00 14.80
A4000WR-S-04P157 12.00 18.00 14.80
A4000WR-S-05P 16.00 22.00 18.80
A4000WR-S-05PQ3 16.00 22.00 18.80
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-277-
