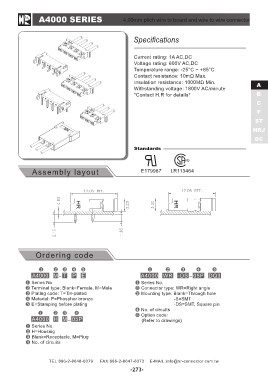

A4000 SERIES 4.00mm pitch wire to board and wire to wire connector
Assembly layout
Specifications

Current rating: 1A AC,DC A
Voltage rating: 600V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1800V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987 ®

LR113464

Ordering code

A4000 M - T P E A4000 WR -DS - 05P DQ3

Series No. Series No.
Terminal type: Blank=Female, M=Male Connector type: WR=Right angle
Plating code: T=Tin-plated Mounting type: Blank=Through hole
Material: P=Phosphor bronze
E=Stamping before plating -S=SMT
-DS=SMT, Square pin
A4000 H M - 05P No. of circuits
Option code:
Series No. (Refer to drawings)
H=Housing
Blank=Receptacle, M=Plug
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
