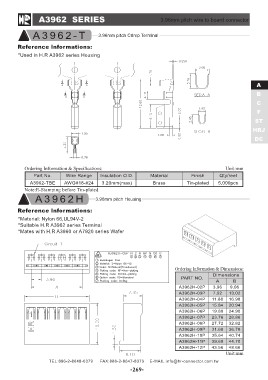

A3962 SERIES 3.96mm pitch wire to board connector
A3962-T 3.96mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A3962 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Brass Tin-plated
A3962-TBE AWG#18-#24 3.20mm(max)
Note:E-Stamping before Tin-plated
A 3 9 6 2 H 3.96mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-2
*Suitable H.R A3962 series Terminal
*Mates with H.R A3960 or A7920 series Wafer
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A3962H-02P 3.96 9.06
A3962H-03P 7.92 13.02
A3962H-04P 11.88 16.98
A3962H-05P 15.84 20.94
A3962H-06P 19.80 24.90
A3962H-07P 23.76 28.86
A3962H-08P 27.72 32.82
A3962H-09P 31.68 36.78
A3962H-10P 35.64 40.74
A3962H-11P 39.60 44.70
A3962H-12P 43.56 48.66
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-269-
