P. 287

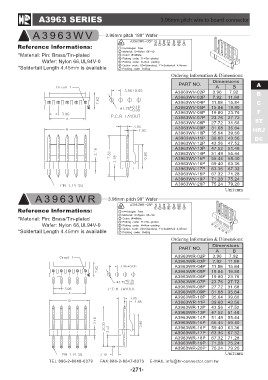

A3963 SERIES 3.96mm pitch wire to board connector
AA30986030WH IV 3.96mm pitch 180° Wafer
Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
PART NO. Dimensions A
Wafer: Nylon 66,UL94V-0 AB B
*Soldertail Length 4.45mm is available C
A3963WV-02P 3.96 7.92 F
A 30 98 06 03 WH IR 3.96mm pitch 90° Wafer ST
A3963WV-03P 7.92 11.88 HRJ
DC
A3963WV-04P 11.88 15.84
A3963WV-05P 15.84 19.80
A3963WV-06P 19.80 23.76
A3963WV-07P 23.76 27.72
A3963WV-08P 27.72 31.68
A3963WV-09P 31.68 35.64
A3963WV-10P 35.64 39.60
A3963WV-11P 39.60 43.56
A3963WV-12P 43.56 47.52
A3963WV-13P 47.52 51.48
A3963WV-14P 51.48 55.44
A3963WV-15P 55.44 59.40
A3963WV-16P 59.40 63.36
A3963WV-17P 63.36 67.32
A3963WV-18P 67.32 71.28
A3963WV-19P 71.28 75.24
A3963WV-20P 75.24 79.20
Unit:mm
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Soldertail Length 4.45mm is available
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A3963WR-02P
A3963WR-03P 3.96 7.92
A3963WR-04P 7.92 11.88
A3963WR-05P 11.88 15.84
A3963WR-06P 15.84 19.80
A3963WR-07P 19.80 23.76
A3963WR-08P 23.76 27.72
A3963WR-09P 27.72 31.68
A3963WR-10P 31.68 35.64
A3963WR-11P 35.64 39.60
A3963WR-12P 39.60 43.56
A3963WR-13P 43.56 47.52
A3963WR-14P 47.52 51.48
A3963WR-15P 51.48 55.44
A3963WR-16P 55.44 59.40
A3963WR-17P 59.40 63.36
A3963WR-18P 63.36 67.32
A3963WR-19P 67.32 71.28
A3963WR-20P 71.28 75.24
75.24 79.20
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
