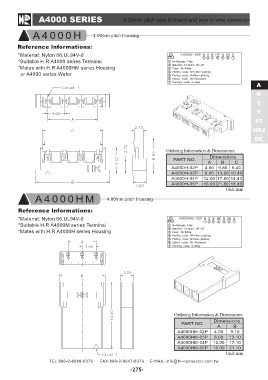

A4000 SERIES 4.00mm pitch wire to board and wire to wire connector

A 4 0 0 0 H 4.00mm pitch Housing A
B
Reference lnformations: C
*Material: Nylon 66,UL94V-0 F
*Suitable H.R A4000 series Terminal ST
*Mates with H.R A4000HM series Housing HRJ
or A4000 series Wafer DC

A 4 0 0 0 H M 4.00mm pitch Housing Ordering Information & Dimensions:

Reference lnformations: PART NO. Dimensions
*Material: Nylon 66,UL94V-0 ABC
*Suitable H.R A4000M series Terminal
*Mates with H.R A4000H series Housing A4000H-02P 4.00 9.80 6.40

A4000H-03P 8.00 13.80 10.40

A4000H-04P 12.00 17.80 14.40

A4000H-05P 16.00 21.80 18.40

Unit:mm

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A4000HM-02P 4.00 9.10

A4000HM-03P 8.00 13.10

A4000HM-04P 12.00 17.10

A4000HM-05P 16.00 21.10

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
