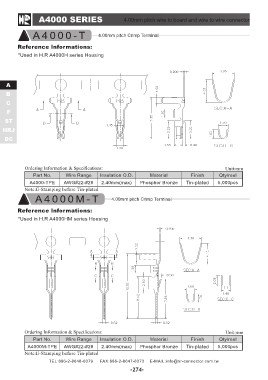

A4000 SERIES 4.00mm pitch wire to board and wire to wire connector

A4000-T 4.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A4000H series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish
Tin-plated 5,000pcs
A4000-TPE AWG#22-#28 2.40mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

A4000M-T 4.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A4000HM series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Phosphor Bronze Tin-plated
A4000M-TPE AWG#22-#28 2.40mm(max)
Note:E-Stamping before Tin-plated
