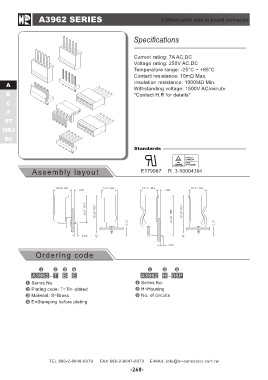

A3962 SERIES 3.96mm pitch wire to board connector
A Specifications
B
C Current rating: 7A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
Assembly layout *Contact H.R for details*
Standards
TÜV BAUART
Rheinland GEPRÜFT
Product Aafety
TYPE
APPROVED
E179987 R 3-50004394
Ordering code A3962 H - 05P
A3962 - T B E Series No.
H=Housing
Series No. No. of circuits
Plating code: T=Tin–plated
Material: B=Brass
E=Stamping before plating
