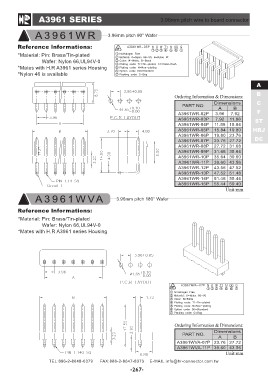

A3961 SERIES 3.96mm pitch wire to board connector
A 3 9 6 1 W R 3.96mm pitch 90° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A3961 series Housing
*Nylon 46 is available
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
A3961WR-02P AB F
ST
3.96 7.92 HRJ
DC
A3961WR-03P 7.92 11.88
A3961WR-04P 11.88 15.84
A3961WR-05P 15.84 19.80
A3961WR-06P 19.80 23.76
A3961WR-07P 23.76 27.72
A3961WR-08P 27.72 31.68
A3961WR-09P 31.68 35.64
A3961WR-10P 35.64 39.60
A3961WR-11P 39.60 43.56
A3961WR-12P 43.56 47.52
A3961WR-13P 47.52 51.48
A3961WR-14P 51.48 55.44
A3961WR-15P 55.44 59.40
Unit:mm
A 3 9 6 1 W VA 3.96mm pitch 180° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A3961 series Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A3961WVA-07P 23.76 27.72
A3961WVA-11P 39.60 43.56
Unit:mm
