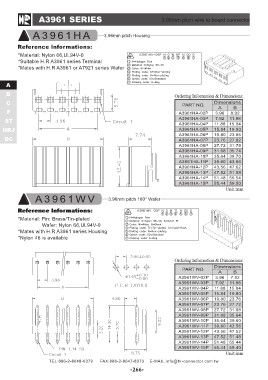

A3961 SERIES 3.96mm pitch wire to board connector

A3961HA 3.96mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A3961 series Terminal
*Mates with H.R A3961 or A7921 series Wafer

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F A3961HA-02P AB
ST
HRJ 3.96 8.02
DC
A3961HA-03P 7.92 11.98

A3961HA-04P 11.88 15.94
A3961HA-05P 15.84 19.90

A3961HA-06P 19.80 23.86
A3961HA-07P 23.76 27.82

A3961HA-08P 27.72 31.78

A3961HA-09P 31.68 35.74
A3961HA-10P 35.64 39.70

A3961HA-11P 39.60 43.66

A3961HA-12P 43.56 47.62
A3961HA-13P 47.52 51.58

A3961HA-14P 51.48 55.54
A3961HA-15P 55.44 59.50

Unit:mm

A3961WV 3.96mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A3961 series Housing
*Nylon 46 is available

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A3961WV-02P 3.96 7.92

A3961WV-03P 7.92 11.88

A3961WV-04P 11.88 15.84

A3961WV-05P 15.84 19.80

A3961WV-06P 19.80 23.76

A3961WV-07P 23.76 27.72

A3961WV-08P 27.72 31.68

A3961WV-09P 31.68 35.64

A3961WV-10P 35.64 39.60

A3961WV-11P 39.60 43.56

A3961WV-12P 43.56 47.52

A3961WV-13P 47.52 51.48

A3961WV-14P 51.48 55.44

A3961WV-15P 55.44 59.40

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
