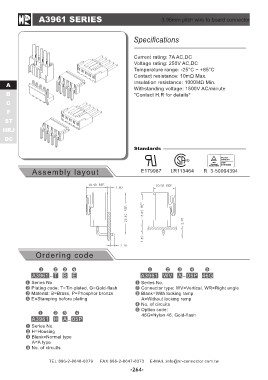

A3961 SERIES 3.96mm pitch wire to board connector

A Specifications
B
C Current rating: 7A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
Assembly layout *Contact H.R for details*

Standards

® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED

E179987 R 3-50004394

Ordering code

A3961 - T B E A3961 WV A - 05P 46G

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: B=Brass, P=Phosphor bronze Blank=With locking ramp
E=Stamping before plating A=Without locking ramp
No. of circuits
A3961 H A - 05P Option code:
46G=Nylon 46, Gold-flash
Series No.
H=Housing
Blank=Normal type
A=A type
No. of circuits
