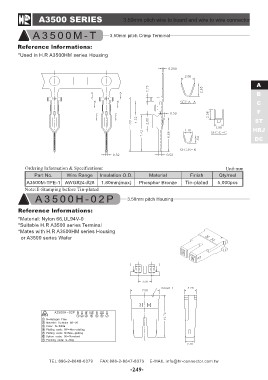

A3500 SERIES                            3.50mm pitch wire to board and wire to wire connector

A3500M-T                               3.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A3500HM series Housing

                                                                                                 A
                                                                                                 B
                                                                                                 C
                                                                                                 F
                                                                                                ST
                                                                                               HRJ
                                                                                                DC

Ordering Information & Speciļ¬cations:                                               Unit:mm
                                                                                Qty/reel
Part No.  Wire Range Insulation O.D.    Material                       Finish
                                                                    Tin-plated  5,000pcs
A3500M-TPE-1 AWG#24-#28 1.80mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

A 3 5 0 0 H - 0 2 P 3.50mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A3500 series Terminal
*Mates with H.R A3500HM series Housing

 or A3500 series Wafer

TEL:886-2-8648-0379                FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
